Bafang Motor Kit BBS02B Brushless Motor 48V 500W Mid Drive Motor Bike Electric Conversion Kit EBike Engine Bicicleta Eletrica

Brand Name BLUENERGY

Voltage 48V

Wattage > 400w

Design Brushless

Motor Type Side Hung Motor

Support Customized Yes

Bafang Motor type 48V 500W mid drive conversion kit

Bafang controller designed inside the motor

Bafang type MM G340.500

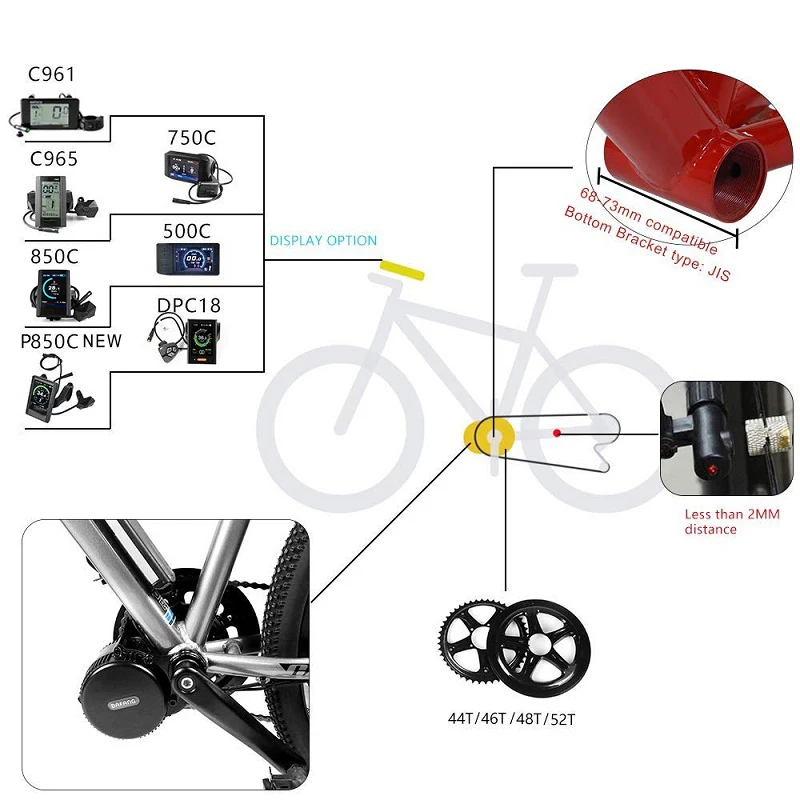

Chainwheel 44T/46T/48T/52T

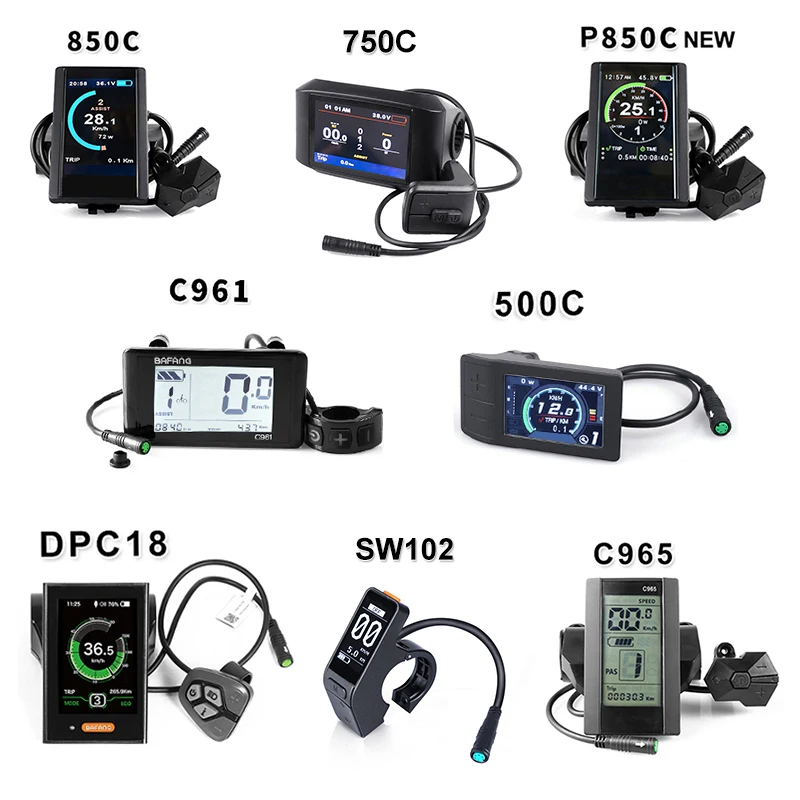

LCD display for Bafang C961/C965/850C/DPC18

Bafang motor Color Black

Watt 500w

Bafang motor Model BBS02

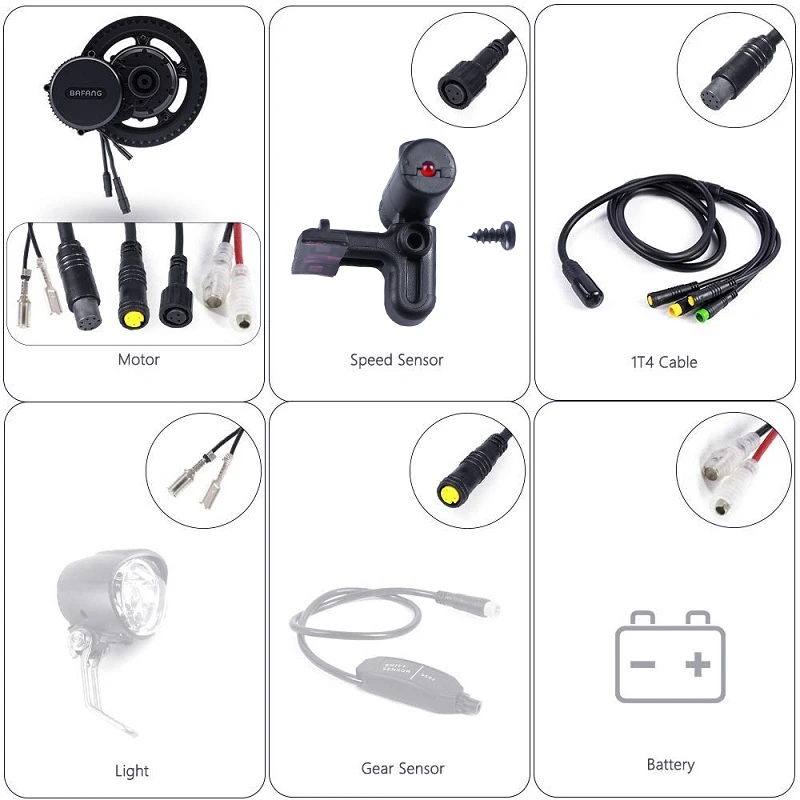

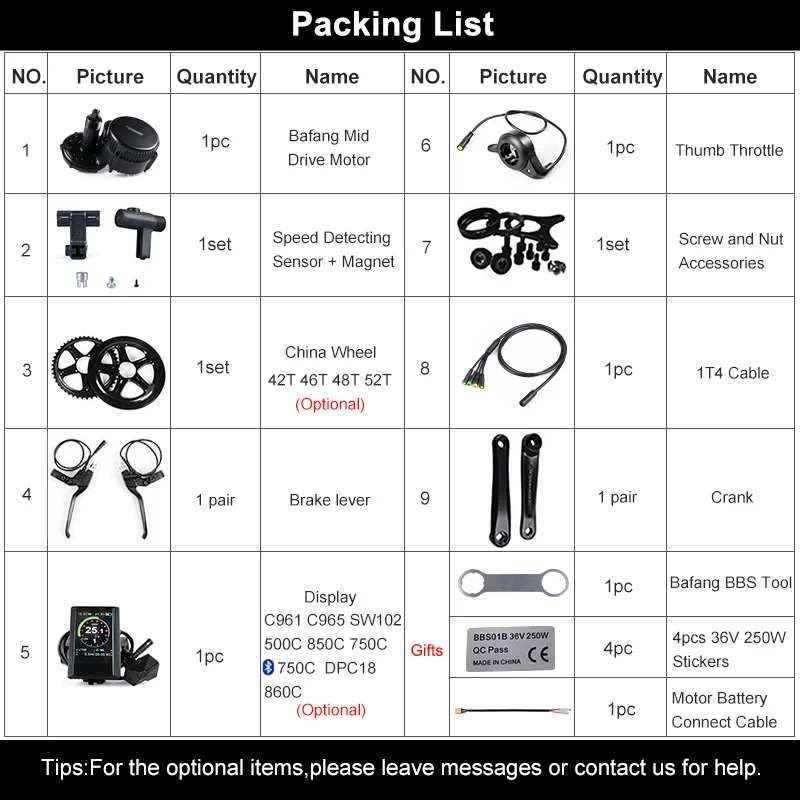

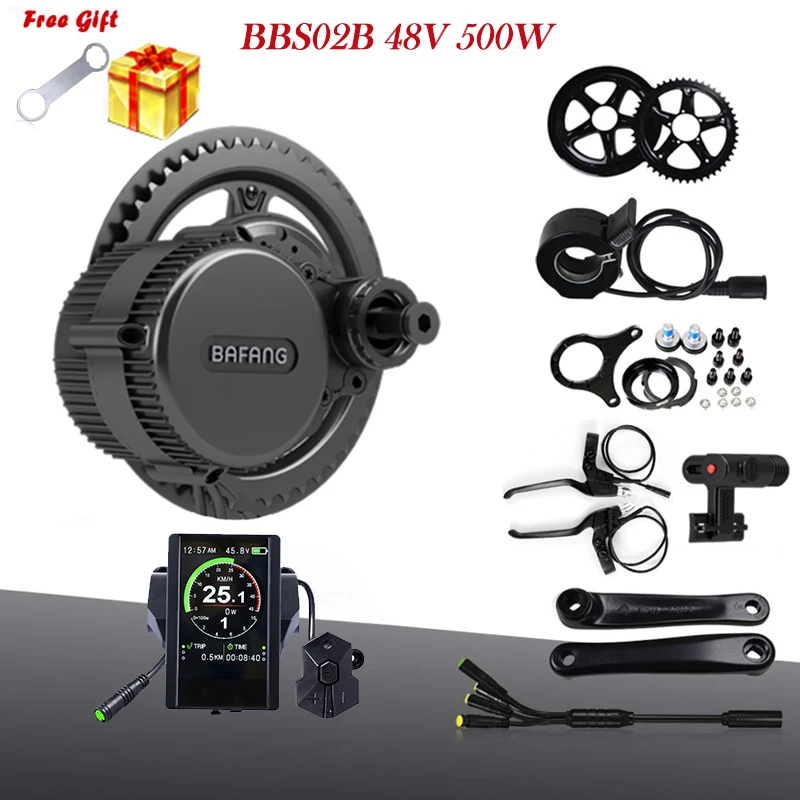

Packaging included: 1 * Mid Drive Motor 1 Pair * Brake Lever(can be changed into hydraulic brake sensor freely,if you need,please leave a message) 1 Pair * Crank 1 Pair * Chainwheel(44T/46T/48T/52T option, please kindly leave us message if you want to change chainwheel) 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 * Display(option) 1 * 4 in 1 Cable 1 * Accessories Free gift:Installation Wrench + XT60 port motor battery connector cable SpecialService for you: 1.We'd like to change the brake lever intoHydraulic Brake Sensor for free. Please kindly remark while you make order if you need. 2.There are 44T, 46T,48T,52T chainwheels for you to choose. All of them can't be added in the link. Please kindly leave us message if you want to change the chainwheel for free. 3.We have one year quality warranty. You may be interested in the following linksproducts： 48V 500W BafangBBS02B Mid Drive Motor With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500W, a reduction ratio of 1: 21.9,providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. Feature: 1, It's the newest version with gear shift and light connector. 2. The mosfet is If IRFB3077 in the controller. 3,44T/46T/48T/52Tchain wheels for you to choose.Please kindly leave message if you need change chainwheel. 4, DPC18,P850C,850C,750C,500C,SW102,C965,C961total 8 kinds of display for you to choose. Specification: Power:500W Voltage:48V Controller Current: 18A Bracket bottom length:68mm Display Working Temperature:-20-80C Waterproof Grade:IP65 How do I know if this mid drive motor fits for my bike? This mid drive motor fits for the bike with 68mm or 73mm wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. You should know it： BB Application BB68 Fit 68-73mm BB100 Fit 100mm BB120 Fit 120mm Hot Recommend:
